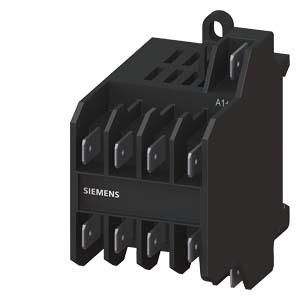

Power relay, AC-3 8.4A, 4kW / 400V 4S, AC 110V, 45...450Hz 3-pole, flat plug connection 6.3 x 0.8 mm Miniature contactor SIRIUS 3TG10 for switching control signals in the control circuit, e.g. for household appliances, lifting equipment or in the installation area. The 3TG10 miniature contactors are characterized by their small width. They operate hum-free, have a built-in auxiliary switch and can be mounted in any position.The 3TG10 miniature contactors are available in AC or DC operation, for various operating currents, with 4 NO contacts or 3 NO contacts and one NC contact and are available with screw or flat plug connection.Simple, efficient, always up-to-date - the SIRIUS modular system.
| Property | Value |
| Number of NO contacts as main contacts: | 3 |
| Number of auxiliary contacts as NO contacts: | 1 |
| Rated operating power at AC-3, 400 V: | 4 kW |
| Rated operating current Ie at AC-1, 400 V: | 16 A |
| Rated operating current Ie at AC-3, 400 V: | 8.4 A |
| Type of voltage for actuation: | AC |
| Rated control supply voltage Us at AC 50 Hz: | 110 V |
| Rated control supply voltage Us at AC 60 Hz: | 110 V |
| Suitable for series installation: | yes |
| Rated operating power NEMA: | 3.677493749 kW |
Features
HAB
3TG1010-1AG2 AC110V, 45...450Hz
Manufacturer
HAN
3TG1010-1AG2
GTIN
4011209045071
Number of auxiliary contacts as normally open
1
Number of normally open contacts as main contacts
3
Rated operating power NEMA
3.677493749kW
Rated operational power at AC-3, 400 V
4kW
Rated operational current Ie at AC-1, 400 V
16A
Rated operational current Ie at AC-3, 400 V
8.4 A
Rated control supply voltage Us at AC 50 Hz
110V
Rated control supply voltage Us at AC 60 Hz
110V
Suitable for series installation
Yes
Voltage type for actuation
AC
