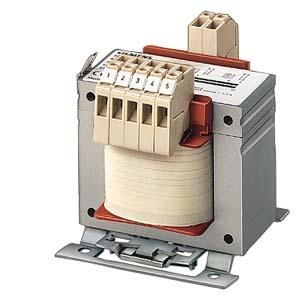

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 16 /0, 49, UPRI(V):600-575-550-525-500- 480-460-440-415-400-240-230, USEC(V):24, ISEC(A):6, 67, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREWS / DIN RAIL, EN 61558-2-2, -2-6 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >SAFETY TRANSFORMER< The transformers 4AM combine all the properties of single-phase safety, isolating, control and mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.
| Property | Value |
| Rated apparent power: | 160 VA |
| Height: | 106 mm |
| Width: | 98 mm |
| Depth: | 104 mm |
| Primary voltage 1: | 600 V |
| Secondary voltage 1: | 24 V |
| Suitable for Series installation: | no |
| Short-circuit proof: | no |
| Primary voltage 2: | 575 V |
| Primary voltage 3: | 550 V |
| Primary voltage 4: | 525 V |
| Primary voltage 5: | 500 V |
| Primary voltage 6: | 480 V |
| Primary voltage 7: | 460 V |
| Primary voltage 8: | 440 V |
| Primary voltage 9: | 415 V |
| Primary voltage 10: | 400 V |
| Designed as an isolating transformer: | no |
| Relative short-circuit voltage uk: | 7.7 % |
| Toroid core: | no |
| Insulation class according to IEC 85: | B |
| Suitable for Board mounting: | no |
| Designed as a safety transformer: | no |
| Designed as an economy transformer: | no |
Features
Short circuit proof
No
Secondary voltage 1
24 V
HAB
4AM3842-8EN00-0EA0 SITAS-IP00
Manufacturer
HAN
4AM3842-8EN00-0EA0
GTIN
4001869905075
Width
98 mm
Suitable for series installation
No
Height
106 mm
Depth
104 mm
