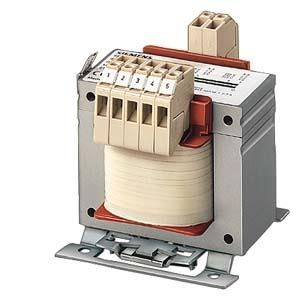

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 8 /3, 4, UPRI(V):500+/-5%, USEC(V):230, ISEC(A):3, 48, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREW, EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >ISOLATING TRANSFORMER< The 4AM transformers combine all the properties of single-phase safety, isolating, control or mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.
| Property | Value |
| Rated apparent power: | 800 VA |
| Height: | 144 mm |
| Width: | 152 mm |
| Depth: | 126 mm |
| Primary voltage 1: | 525 V |
| Secondary voltage 1: | 230 V |
| Suitable for Series installation: | no |
| Short-circuit proof: | no |
| Primary voltage 2: | 500 V |
| Primary voltage 3: | 475 V |
| Designed as an isolating transformer: | no |
| Toroidal core: | no |
| Insulation class according to IEC 85: | B |
| Suitable for circuit board mounting: | no |
| Designed as a safety transformer: | no |
| Designed as an economy transformer: | no |
Features
Short circuit proof
No
Secondary voltage 1
230 V
HAB
4AM5542-5FT10-0FA0 SITAS-IP00
Manufacturer
HAN
4AM5542-5FT10-0FA0
GTIN
4001869904054
Width
152 mm
Suitable for series installation
No
Height
144 mm
Depth
126 mm
