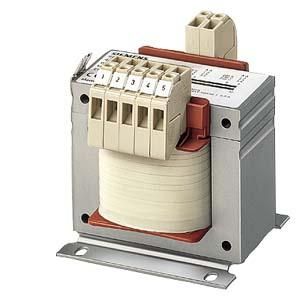

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):1, 6 /7, 3, UPRI(V):400+/-5%, USEC(V):230, ISEC(A):6, 96, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:CAGE CLAMP, MOUNTING:SCREWS, EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >ISOLATING TRANSFORMER< The 4AM transformers combine all the properties of single-phase safety, isolating, control or mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.
| Property | Value |
| Rated apparent power: | 1600 VA |
| Height: | 164 mm |
| Width: | 176 mm |
| Depth: | 138 mm |
| Primary voltage 1: | 420 V |
| Secondary voltage 1: | 230 V |
| Suitable for series installation: | no |
| Short-circuit proof: | no |
| Primary voltage 2: | 400 V |
| Primary voltage 3: | 380 V |
| Designed as an isolating transformer: | no |
| Relative short-circuit voltage uk: | 2.51 % |
| Toroidal core: | no |
| Insulating material class according to IEC 85: | B |
| Suitable for circuit board mounting: | no |
| Designed as a safety transformer: | no |
| Designed as an economy transformer: | no |
Features
Short circuit proof
No
Secondary voltage 1
230 V
HAB
4AM6142-5AT10-0FA1 SITAS-IP00
Manufacturer
HAN
4AM6142-5AT10-0FA1
GTIN
4001869906713
Width
176 mm
Suitable for series installation
No
Height
164 mm
Depth
138 mm
