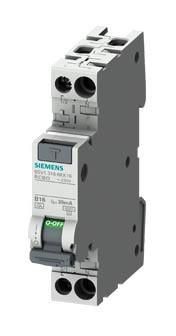

FI/LS compact 1P+N 6kA Type A 30mA B16 The residual current device is the residual current device for contact protection The patented residual current devices from Siemens are an important part of the SENTRON protection components for electrical installations, because they prevent life-threatening electrical accidents by safely switching off dangerous residual currents to earth. Electrically ignited fires can be prevented before they even start. Whether through direct contact with live parts or through indirect contact with equipment - protection is achieved primarily through rapid switching off. The Siemens residual current devices 5SV are characterized above all by: 1. Comprehensive protection for people and property against electric shock. 2. Whether sinusoidal alternating residual currents or smooth direct residual currents - Siemens offers the right type and special designs for all requirements. 3. Reliable safety during installation thanks to the reach-around and contact protection included as standard. 4. Tool-free removal from the top hat rail or from the busbar assembly using a convenient manual slider. 5. The data matrix code on the front of the device provides all information about the residual current device quickly and easily. 6. Be protected in accordance with standards: The residual current devices comply with the provisions of DIN VDE. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/fehlerstromschutz. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.
| Property | Value |
| Rated current: | 16 A |
| Rated residual current: | 0.03 A |
| Rated voltage: | 230 V |
| Number of poles (total): | 2 |
| Width in modular spacing: | 1 |
| Residual current type: | A |
| Installation depth: | 70 mm |
| Rated breaking capacity according to IEC 60947-2: | 15 kA |
| Surge current strength: | 1 kA |
| Energy limitation class: | 3 |
| Overvoltage category: | 2 |
| Pollution degree: | 2 |
| Switching neutral conductor: | yes |
| Number of protected Poles: | 1 |
| Type of voltage: | AC |
| False tripping protection: | yes |
| Rated insulation voltage Ui: | 253 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated breaking capacity according to EN 61009: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| With Locking device: | yes |
| Connectable conductor cross-section, single-wire: | 0.75 to 16 mm² |
| Connectable conductor cross-section, stranded: | 0.75 to 16 mm² |
