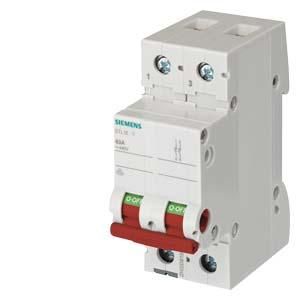

Off switch 100A 2-pole, with red handle On and off switch for DIN rail mounting for controlling electrical systems. The 5TL1 on and off switches are used to switch lighting, motors and other electrical devices. The rated currents range from 32 A to 125 A. The 5TL1 device variants can also be used as load disconnectors in accordance with EN 60947-1. The devices can be used as main switches for isolating or disconnecting systems in accordance with EN 60204-1. Whether infrastructure or industrial requirements - Siemens offers switching devices for all applications and every area of use. The new design allows the 5TL1 on and off switch to be perfectly integrated into the range of residual current circuit breakers and circuit breakers. Siemens switchgear is characterized above all by: 1. Increased operational safety and system availability thanks to separate switching on and off of the relevant circuit. 2. Reliable safety during installation thanks to the standard anti-reach and touch protection. 3. Tool-free removal from the top hat rail or from the busbar assembly thanks to convenient manual slide operation. 4. Clearly visible switch position indicator. 5. Can be used as a load-break switch and main switch. 6. The on and off switches comply with the provisions of EN 60947-1 and EN 60204-1. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.
| Property | Value |
| Number of poles: | 2 |
| Rated current: | 100 A |
| Rated voltage: | 440 V |
| Width in modular spacing: | 2 |
| With signal lamp: | no |
| Color of Cap: | other |
| Light source: | other |
| Rated breaking capacity: | 0.3 kA |
| Short circuit strength (Icw): | 10 kA |
| Lamp base: | other |
| Installation depth: | 70 mm |
| Number of contacts as normally open: | 2 |
