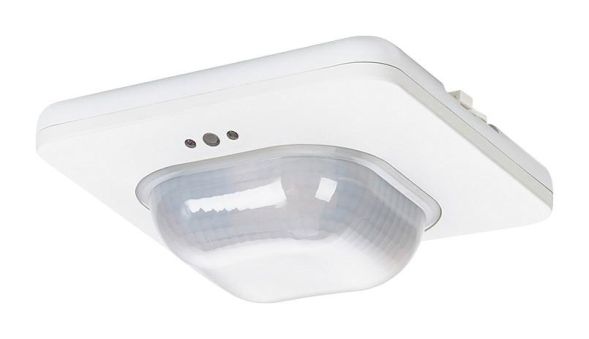

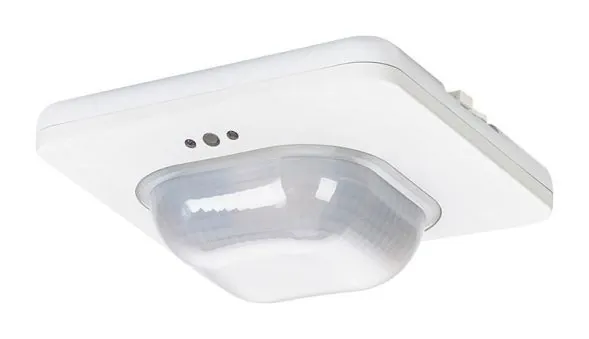

Passive infrared detector for ceiling mounting, - horizontal motion detection range 360°, - presence, motion detection up to 64 m² or 400 m² (depending on the installation or room height), - PIR range adjustment to set the range of the presence detector, - brightness and temperature measurement, - integrated IR receiver and IR decoder for IR remote control with six pairs of buttons, - LED to display detected movements in the delivery state for easy commissioning, - programming button can be operated from the front, - integrated bus coupler, bus connection via bus terminal, operation of the electronics via bus voltage, - mounting on the ceiling on a flush-mounted device box with a diameter of 60 mm or in a surface-mounted housing or mounting plate for 4 x 4 boxes that must be ordered separately, - color white (similar to RAL 9016)
| Features | Value |
| Number of channels: | 3 |
| Optimal installation height: | 3 m |
| Color: | white |
| Design: | Presence detector |
| Mounting type: | Flush-mounted |
| KNX bus system: | yes |
| Max. range to one side: | 11 m |
| Max. Frontal range: | 11 m |
| Horizontal detection angle: | 0 to 360 ° |
| Min. duty cycle: | 1 s |
| Max. Duty cycle: | 1092 min |
| Vertical detection angle: | 0 to 150 ° |
| Detection field diameter on floor: | 22 m |
| Response brightness adjustable: | yes |
| Teach function for response brightness: | no |
| Self-learning switch-off delay: | no |
| Bus system radio bus: | no |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | without |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9016 |
| With bus connection: | yes |
| Extension input: | no |
| Creep under protection/rear field monitoring: | no |
| Animal corridor: | no |
| Staircase monitoring: | no |
| Transparent: | no |
| Bus system KNX radio: | no |
| Bidirectional radio: | no |
| Operating mode switch: | no |
| Min. depth of the device box: | 25 mm |
