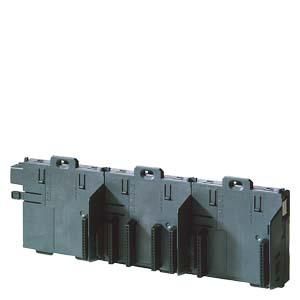

SIPLUS ET 200M active bus module 2x 40mm modules based on 6ES7195-7HB00-0XA0 with conformal coating, -40.+70°C, start up -25°C, for accommodating 2 IM 153-2 Red for plugging and unplugging function during operation Run SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used both as a central I/O on an S7-300, and in a decentralized configuration on a PROFINET or PROFIBUS ET 200M interface module. Up to 12 IO modules can be plugged into each station. The standardized structure of all modules significantly simplifies logistics and spare parts management. Bus adapters from SIPLUS extreme are specially designed for harsh environmental conditions so that biologically, chemically and mechanically active substances do not affect your communication.
| Property | Value |
| Input voltage for DC: | 20.4 to 28.8 V |
| Front installation possible: | no |
| Suitable for safety functions: | no |
| Max. Input current at DC: | 6 A |
| Rack mounting possible: | no |
| Wall/direct mounting possible: | yes |
| DIN rail mounting possible: | yes |
| Number of slots: | 2 |
| With pluggable modules, digital I/O: | yes |
| With pluggable modules, analog I/O: | yes |
| With pluggable modules, communication modules: | yes |
| With pluggable modules, function and technology modules: | yes |
| With pluggable modules, central modules: | yes |
| With pluggable modules, other: | yes |
| With integrated power supply: | no |
| Type of input voltage: | DC |
| System component: | yes |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Width: | 97 mm |
| Height: | 92 mm |
| Depth: | 30 mm |
