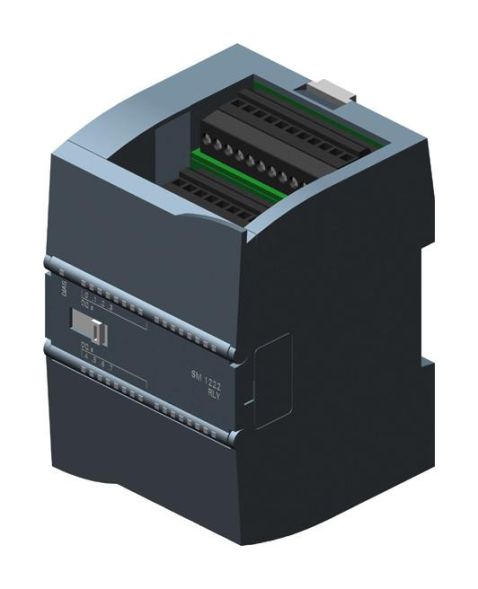

SIPLUS S7-1200 SM 1222 8DQ based on 6ES7222-1XF32-0XB0 with conformal coating, -20.+60°C, digital output SM 1222, 8DQ, relay changeover contact SIMATIC S7-1200 Basic Controller - flexible thanks to a wide range of communication options. With signal modules, you can adapt the configuration of your SIMATIC S7-1200 (except CPU 1211C) to suit your individual requirements. A range of digital and analog input, output and mixed modules is available for this purpose, including fail-safe versions. This fine-grained design option saves you space in the control cabinet and optimizes your hardware costs. Like the CPU, the digital output modules are also protected against extreme environmental conditions. Thanks to the 100% conformal coating, they can withstand biological, chemical and mechanically active substances, condensation, frost and harmful gases. No matter what the conditions - your digital signals are output reliably.
| Property | Value |
| Number of digital outputs: | 8 |
| Redundancy capability: | no |
| Supply voltage for DC: | 20.4 to 28.8 V |
| Height: | 100 mm |
| Width: | 45 mm |
| Depth: | 75 mm |
| Voltage type of Supply voltage: | DC |
| Type of output voltage: | AC/DC |
| Permissible voltage at the output: | 5 to 250 V |
| Suitable for safety functions: | no |
| Delay time when signal changes: | 10 ms |
| Short-circuit protection, outputs present: | no |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Digital outputs configurable: | yes |
