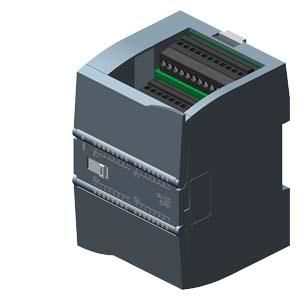

SIPLUS S7-1200 SM 1223 16DI/16DQ RLY based on 6ES7223-1PL32-0XB0 with conformal coating, -20.+60°C, digital input/output 16DI/16 DQ, 16DI DC 24V, sink/source, 16 DQ, relay 2A SIMATIC S7-1200 Basic Controller - flexible thanks to a wide range of communication options. With signal modules, you can adapt the configuration of your SIMATIC S7-1200 (except CPU 1211C) to suit your individual requirements. A range of digital and analog input, output and mixed modules is available for this purpose, including fail-safe versions. This fine-grained design option saves you space in the control cabinet and optimizes your hardware costs. Like the CPU, the digital input and output modules are also protected against extreme environmental conditions. Thanks to the 100% conformal coating, they resist biological, chemical and mechanically active substances, condensation, frost and harmful gases. No matter what the conditions - your digital signals are reliably recorded.
| Property | Value |
| Number of digital inputs: | 16 |
| Number of digital outputs: | 16 |
| Redundancy capability: | no |
| Output current: | 2 A |
| Supply voltage for DC: | 20.4 to 28.8 V |
| Height: | 100 mm |
| Width: | 70 mm |
| Depth: | 75 mm |
| Type of supply voltage: | DC |
| Type of input voltage: | DC |
| Permissible voltage at the input: | 0 to 30 V |
| Type of output voltage: | AC/DC |
| Permissible voltage at the output: | 5 to 250 V |
| Suitable for safety functions: | no |
| Input current for signal 1: | 4 mA |
| Delay time for signal change: | 0.2 to 12.8 ms |
| Short circuit protection, outputs available: | no |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Explosion protection category for gas: | ATEX gas explosion protection, cat. 3G |
| Digital outputs configurable: | yes |
| Digital inputs configurable: | yes |
