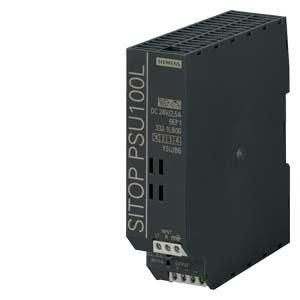

SITOP PSU100L 24 V/2.5 A Regulated power supply Input: AC 120/230 V Output: DC 24 V/2.5 A The 1-phase SITOP lite power supplies are designed for basic requirements in industrial environments and offer all important functions at an affordable price. The wide-range input with manual switching enables connection to a wide variety of 1-phase supply networks. Due to their narrow width, the power supplies require little space on the DIN rail and their good efficiency means that little heat is lost in the control cabinet. To further increase the 24 V availability, the SITOP lite power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. No matter what industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.
| Feature | Value |
| Installation height: | 225 mm |
| 1. Output voltage: | 24 V |
| Type of supply voltage: | AC |
| Max. Output current 1: | 2.5 A |
| Output voltage adjustable: | yes |
| Rated supply voltage at AC 50 Hz: | 230 V |
| Rated supply voltage at AC 60 Hz: | 120 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Direct mounting possible: | no |
| Output voltage regulated: | yes |
| Power output: | 60 W |
| Suitable for series installation: | yes |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Protection class (IP): | IP20 |
| Width: | 32.5 mm |
| Height: | 125 mm |
| Depth: | 120 mm |
| Nominal output voltage 1: | 24 V |
| Nominal output current 1: | 2.5 A |
| Installation width: | 32.5 mm |
