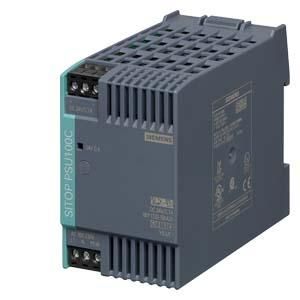

SITOP PSU100C 24 V/3.7 A Regulated power supply Input: AC 120-230 V (DC 110-300 V) Output: DC 24 V/3.7 A Output limited NEC Class 2 *EX approval no longer available* The 1-phase SITOP compact are slim and space-saving power supplies for the lower power range. They are used in decentralized applications in control boxes or in small control cabinets. They are characterized by low power loss across the entire load range. Even when idle, the losses are extremely low, which is why they are ideal for the efficient supply of machines and systems that are often in standby mode. The switching power supplies have a wide-range input for AC and DC networks, and plug-in terminals support easy electrical connection. The wide temperature range and extensive validation offer universal application options. To further increase the 24 V availability, the SITOP compact power supplies can be combined with redundancy modules and DC UPS. No matter what industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.
| Feature | Value |
| Installation height: | 180 mm |
| 1. Output voltage: | 24 V |
| Type of supply voltage: | AC/DC |
| Max. Output current 1: | 3.7 A |
| Output voltage adjustable: | no |
| Rated supply voltage at AC 50 Hz: | 230 V |
| Rated supply voltage at AC 60 Hz: | 100 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Direct mounting possible: | no |
| Output voltage regulated: | yes |
| Power output: | 89 W |
| Suitable for series installation: | yes |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Protection class (IP): | IP20 |
| Width: | 52.5 mm |
| Height: | 80 mm |
| Depth: | 100 mm |
| Nominal output voltage 1: | 24 V |
| Nominal output current 1: | 3.7 A |
| Installation width: | 52.5 mm |
