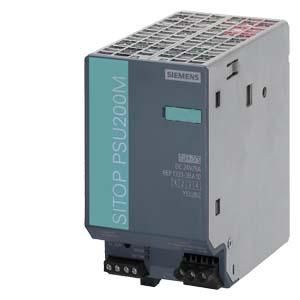

SITOP PSU200M 5 A Regulated power supply Input: AC 120/230-500 V Output: DC 24 V/5 A *EX approval no longer available* The 1- and 2-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex systems and machines. The ultra-wide range input enables connection to 1-phase supply networks or directly between the outer conductors of three-phase networks (2-phase) and ensures high safety even with large voltage fluctuations. The power boost briefly supplies up to three times the rated current. And in the event of an overload, you can choose between constant current with automatic restart or latching shutdown. The high efficiency keeps energy consumption and heat development in the control cabinet low and the compact metal housing also saves space. To further increase the 24 V availability, the power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. No matter what industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.
| Feature | Value |
| Installation height: | 225 mm |
| 1. Output voltage: | 24 V |
| Type of supply voltage: | AC |
| Max. Output current 1: | 5 A |
| Output voltage adjustable: | yes |
| Rated supply voltage at AC 50 Hz: | 230 V |
| Rated supply voltage at AC 60 Hz: | 120 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Direct mounting possible: | no |
| Output voltage regulated: | yes |
| Power output: | 120 W |
| Suitable for series installation: | yes |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Protection class (IP): | IP20 |
| Width: | 70 mm |
| Height: | 125 mm |
| Depth: | 121 mm |
| Nominal output voltage 1: | 24 V |
| Nominal output current 1: | 5 A |
| Installation width: | 70 mm |
