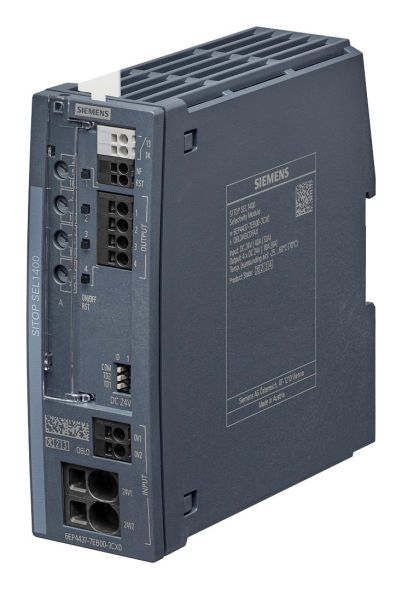

SITOP SEL1400 10 A selectivity module 4-channel with limiting characteristics Input: DC 24 V/40 A Output: DC 24 V/4x 10 A Threshold adjustable 2-10 A with monitoring interface *EX approval no longer available* The SITOP SEL1400 selectivity module is the ideal addition to all 24 V power supplies to divide the load current between several current branches and monitor it. Overload and short circuits in one or more branches are reliably detected. The electronics allow short-term current peaks, e.g. due to high inrush current, and switch branches with longer overloads off. This is ensured even on high-impedance lines and in the case of creeping short circuits. The intact branches are supplied with 24 V with absolutely no interruption or reaction, thus minimizing system downtimes. The faulty branch is signaled via LEDs on the device as well as via a common signaling contact or diagnostic monitor. No matter what industry, no matter what requirement - Siemens offers reliable and efficient power supplies for every system.
| Property | Value |
| Max. permissible response delay time: | 5 s |
| Design of the electrical connection: | Spring-loaded connection |
| Width: | 45 mm |
| Height: | 135 mm |
| Depth: | 125 mm |
| With removable terminals: | no |
| Contains DC voltage undercurrent function: | no |
| Contains DC voltage overcurrent function: | yes |
| DC window function: | yes |
| Rated control supply voltage Us for DC: | 20.4 to 30 V |
