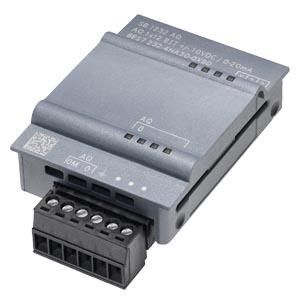

SIMATIC S7-1200, analog output, SB 1232, 1 AO, +/-10V DC (12 bit resolution) or 0-20mA (11 bit resolution) SIMATIC S7-1200, analog output, SB 1232, 1 AO, +/-10V DC (12 bit resolution) or 0-20mA (11 bit resolution) SIMATIC S7-1200 Basic Controller - flexible thanks to a wide range of communication options. If you only need to expand your SIMATIC S7-1200 CPU by a few inputs or outputs, signal boards are a good alternative to signal modules. Signal boards are plugged directly into the front of the controller (also possible with CPU 1211C) and are available as digital and analog input, output and mixed modules. A communication board with RS 485 interface is also available. Signal boards also enable subsequent expansion of the configuration without requiring additional space in the control cabinet.
| Property | Value |
| Suitable for safety functions: | no |
| Resolution of the analog outputs: | 12 bit |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Explosion protection category for gas: | ATEX gas explosion protection, cat. 3G |
| Height: | 62 mm |
| Width: | 38 mm |
| Depth: | 21 mm |
| Input signal configurable: | yes |
| Output, current: | yes |
| Output, voltage: | yes |
| Output signal configurable: | yes |
| Number of analog outputs: | 1 |
| Analog inputs configurable: | yes |
| Analog outputs configurable: | yes |
