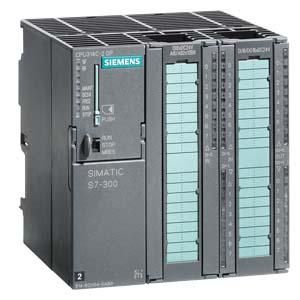

SIMATIC S7-300, CPU 314C-2 DP compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AA, 1 Pt100, 4 fast counters (60 kHz), integrated DP interface, integrated power supply DC 24V, RAM 192 KByte, front connector (2x 40-pin) and Micro Memory Card required Powerful, compact and economical. The SIMATIC S7-300 enables a space-saving and modular design. The diverse range of modules can be used task-specifically for central expansions or the creation of decentralized structures and enables cost-effective spare parts storage. SIMATIC is known for continuity and quality. Do you want to continue to use the investment in your machines and systems? Even more power and performance for your machine The innovative SIMATIC S7-1500 is the successor to the SIMATIC S7-300. This generation of controllers integrates the latest and future-proof technologies into the automation system, with improved system properties. Together with the TIA Portal engineering system, the common engineering for all SIMATIC controllers, you are well prepared for ever faster market changes, ever shorter product life cycles and increasing competition and cost pressure. Information on the product life cycle: The SIMATIC S7-300 / ET 200M system families will generally be available until 2023 as part of our established product range. With the publication of a product discontinuation declaration, the respective products will be available as spare parts for a further 10 years.
| Property | Value |
| Height: | 125 mm |
| Width: | 120 mm |
| Depth: | 130 mm |
| Wireless standard WLAN 802.11: | no |
| With display: | no |
| Wireless standard Bluetooth: | no |
| Suitable for safety functions: | no |
| Supports protocol for INTERBUS: | no |
| Front installation possible: | no |
| Rack mounting possible: | no |
| IO-Link Master: | no |
| Redundancy capability: | yes |
| Type of supply voltage: | DC |
| Supply voltage for DC: | 19.2 to 28.8 V |
| Memory type: | RAM |
| Wall/direct mounting possible: | no |
| System component: | yes |
| Rail mounting possible: | yes |
| Processing time (1K, binary instruction): | 0.06 ms |
| Supports protocol for DeviceNet Safety: | no |
| Supports protocol for CAN: | no |
| Supports Protocol for SERCOS: | no |
| Supports Protocol for KNX: | no |
| Supports Protocol for SUCONET: | no |
| Supports Protocol for SafetyBUS p: | no |
| Supports Protocol for MODBUS: | no |
| Supports Protocol for PROFINET IO: | no |
| Supports Protocol for EtherNet/IP: | no |
| Supports Protocol for Foundation Fieldbus: | no |
| Supports protocol for DeviceNet: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for AS-Interface Safety at Work: | no |
| Supports protocol for Data-Highway: | no |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for other bus systems: | yes |
| Supports protocol for TCP/IP: | no |
| Supports protocol for PROFIBUS: | yes |
| Supports protocol for INTERBUS-Safety: | no |
| Supports protocol for ASI: | no |
| Supports protocol for LON: | no |
| Design: | compact |
| Memory size: | 192 kByte |
| Number of HW interfaces serial RS-485: | 2 |
| With optical interface: | no |
| Program memory expansion possible: | no |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Radio standard GSM: | no |
| Number of analog inputs: | 5 |
| Number of digital inputs: | 24 |
| Wireless standard GPRS: | no |
| Number of analog outputs: | 2 |
| Number of digital outputs: | 16 |
| Wireless standard UMTS: | no |
