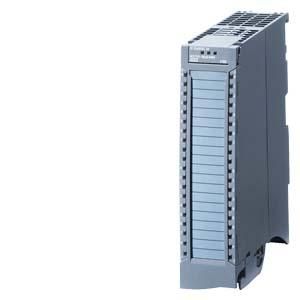

SIMATIC S7-1500, digital input module DI 32xDC 24V HF, 32 channels in groups of 16, input delay 0.05..20ms, input type 3 (IEC 61131), diagnostics, process alarms SIMATIC S7-1500, digital input module DI 32xDC 24V HF, 32 channels in groups of 16, input delay 0.05..20ms, input type 3 (IEC 61131), diagnostics, process alarms The SIMATIC ET 200MP is a modular, scalable and universally applicable I/O system in IP20 and offers the same system advantages as the S7-1500. It allows the shortest bus cycle times and the fastest response times even with large quantities. The decentralized I/O system is particularly easy to install, wire and put into operation. The scalable design allows you to tailor the I/O station precisely to the specific needs on site. The scalable configuration of an ET 200MP station is guaranteed by the comprehensive range of signal modules. Numerous digital and analog input and output modules are available. This guarantees the universal application of the system.
| Property | Value |
| Number of digital inputs: | 32 |
| Redundancy capability: | no |
| Supply voltage for DC: | 19.2 to 28.8 V |
| Height: | 147 mm |
| Width: | 35 mm |
| Depth: | 129 mm |
| Type of voltage of the Supply voltage: | DC |
| Type of input voltage: | DC |
| Permissible voltage at the input: | -30 to 30 V |
| Suitable for safety functions: | no |
| Input current for signal 1: | 2.5 mA |
| Delay time for signal change: | 0.05 to 20 ms |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Digital inputs configurable: | yes |
