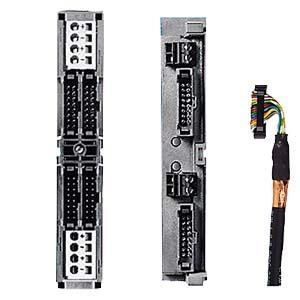

Front connector module with flat round cable connection for analog (40 pin) modules of the S7-300 Power supply via spring terminals The front connector module for SIMATIC S7-300 with spring terminals for potential supply, for connecting 4x16-pin connecting cables represents a modified front connector for connection to an analog I/O module. This is plugged into the module to be wired instead of the front connector. The connecting cables are plugged in here and connected to the connection module. This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring effort, sources of error in the cabling can be significantly reduced. Analog signals from the peripherals are connected to the SIMATIC TOP connect connection modules and connected to the SIMATIC S7-300 via a connecting cable and front connector module.
| Property | Value |
| Number of poles: | 40 |
| Rated voltage: | 60 V |
| Rated current In: | 1 A |
| Operating temperature: | 0 to 60 °C |
| Connectable conductor cross-section, stranded: | 0.25 to 1.5 mm² |
| Connectable conductor cross-section, fine-stranded with wire end ferrule: | 0.25 to 0.75 mm² |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.25 to 0.75 mm² |
| Design of electrical connection 1: | Plug connection |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
