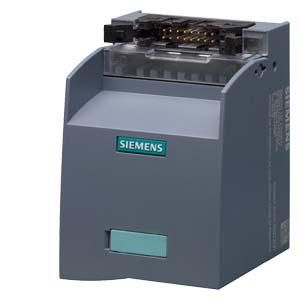

Connection module TP2 8 channels for 2 A-digital outputs and 2x6 multiplication terminals Type: Push-in terminal without LED, PU = 1 piece 16-pin IDC connection for cable The connection module TP2 for the 2 amp output modules with 8 channels for a 2-wire connection with push-in terminals without LED for signaling forms the interface between the connection cables of the I/Os brought in from the field and the SIMATIC S7. This is mounted on the top hat rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task. This connection module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring effort, sources of error in the cabling can be significantly reduced. Actuators from the periphery are connected to the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via a connecting cable and front connector module.
| Property | Value |
| Connectable conductor cross-section, finely stranded with wire end ferrule: | 0.199999999 to 2.5 mm² |
| Connectable conductor cross-section, finely stranded without wire end ferrule: | 0.199999999 to 2.5 mm² |
| Rated current In: | 1 A |
| Connectable conductor cross-section, stranded: | 0.199999999 to 2.5 mm² |
| Operating temperature: | 0 to 60 °C |
| Rated voltage: | 50 V |
| Number of levels: | 1 |
| Design of electrical connection 1: | Plug connection |
| Design of electrical connection 2: | Penetration connection |
| Flammability class of the insulating material according to UL 94: | V1 |
| End plate required: | no |
| LED switching for: | PNP |
| With PE connection: | no |
| With shield connection: | no |
| With feed-in function: | yes |
| Number of terminal points per level: | 1 |
| Levels bridged internally: | no |
| Can be connected crosswise: | no |
| Separation function: | no |
| Explosion-tested version 'Ex e': | no |
