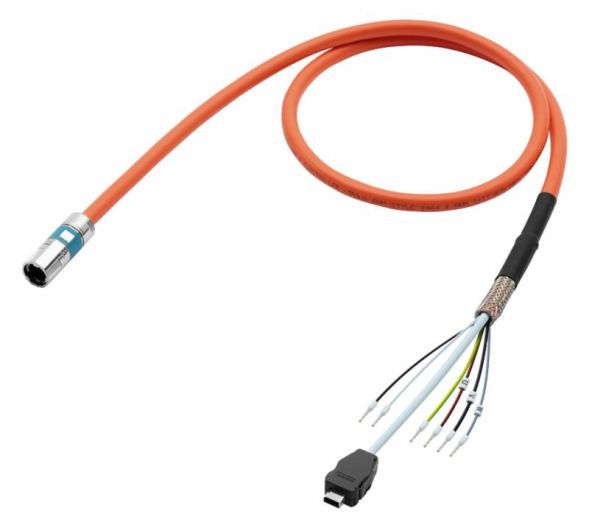

Single cable cable pre-assembled 4G0.38+2x0.38+4x0.2 C connector SPEED-CONNECT M12 wires with wire sleeve data cable with IX connector UL/CSA DESINA MOTION-CONNECT 800PLUS Dmax.=9.7 MM, length (M)= One Cable Connection (OCC) MOTION-CONNECT the simple, fast and safe connection for the SINAMICS S210 servo converter and the SIMOTICS S-1FK2 servo motor. The servo motor and the servo converter are connected to one another with just one cable instead of the usual two or three cables. With this single-cable technology with SPEED-CONNECT quick-release fastener, power, encoder connection and brake control are combined in one cable. This results in a number of advantages, e.g. the time-saving laying of just one cable and the smaller installation space or space required for cable routing. Another advantage is that only one cable needs to be cleaned, especially in industries where there are increased hygiene requirements. The cable can also be ordered to the nearest decimetre and has an M17 or M12 connector on the motor side (the smallest OCC connector in the world). The compact motor with a small, rotatable connector enables easy installation even in confined spaces. The cable has protection class IP20 on the converter side and protection class IP65 on the motor side. Optimized connection technology thanks to OCC (One Cable Connection)
