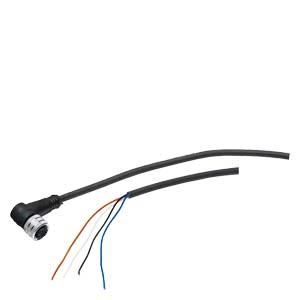

Cable for MV400 and VS100 lights, with angled socket M12 on the light side, one end open, 10m PUR cable, 4-pin, 4x0.34mm2, suitable lights: 6GF3400-0LT01-7BA1, 6GF3400-0LT01-8DA1, 6GF9004-7AA01, ...- 7BA01, -8BA0, ...- 8CA01, ...- 8DA01. SIMATIC MVConnection cable for ring lights, M12 / open strandsHighly flexible sensor cable for connecting an external ring light to a stationary optical reader. The cable connects external ring lights to the control cabinet (24 V).
| Property | Value |
| Number of cores: | 4 |
| Outer diameter approx.: | 4.7 mm |
| Low smoke according to EN 61034-2: | no |
| Sheath color: | black |
| Material of the core insulation: | other |
| Sheath material: | Polyurethane (PUR) |
| Permissible external cable temperature during assembly/handling: | -15 to 80 °C |
| Permissible external cable temperature after assembly without vibration: | -15 to 80 °C |
| Specification of sheath material: | other |
| Fire behavior class according to EN 13501-6: | none |
| Min. permissible bending radius, flexible use with forced guidance: | 23.599999999 mm |
| Min. permissible bending radius, flexible use/free movement: | 23.599999999 mm |
| Min. permissible bending radius, stationary use/fixed installation: | 23.599999999 mm |
Features
Sheath material
Polyurethane (PUR)
Outer diameter approx.
4.7 mm
HAB
6GF3440-8BC4 for SIMATIC VS100 lights
Manufacturer
HAN
6GF3440-8BC4
GTIN
4019169668866
Wire number
4
Coat color
Black
