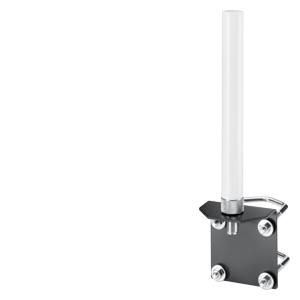

ANT795-6MP IWLAN antenna with omnidirectional characteristics, including N-female connector: 5/7 dBi, IP65/67 (-40-+80°C), 2.4/5 GHz Wi-Fi compliance and country approvals, wall or mast mounting, compact instructions in German/English Scope of delivery: 1x ANT795-6MP, 1x mounting aid. SCALANCE antenna ANT795-6MPUsed for Industrial Wireless LAN (IWLAN) and WLAN according to IEEE 802.11 at 2.4 GHz and 5 GHz with data rates of up to 450 Mbit/s to optimize the transmission and reception conditions. The antenna is connected to access points or clients via an IWLAN antenna connection cable. Examples of use: Illumination of a space in the middle of which there is a mast for mounting the antennas, even under harsh environmental conditions, e.g. outdoors, salty air, comprehensive illumination of a production cell or a robot station. By concentrating the radio field around the antenna, the quality of the connection is improved. Investment protection through conformity with the globally recognized standard IEEE 802.11. Cost-effective connection to devices in remote, difficult to access or aggressive environments.
| Property | Value |
| Indoor: | yes |
| Outdoor: | yes |
| Connection type: | Socket |
| With connection cable: | no |
| Connection: | N |
| Width: | 97 mm |
| Height: | 367 mm |
| Depth: | 64 mm |
| Ambient temperature during operation: | -40 to 80 °C |
