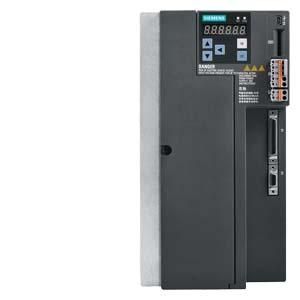

SINAMICS V90 Input voltage: 380-480 V 3 A - 15%/+ 10% 13.8 A 45-66 Hz Output voltage: 0 - input 11.0 A 0-330 Hz Motor: 3.5 kW Protection class: IP20 Size C, 140x260x240 (WxHxD) SINAMICS V90 servo converter is the performance-optimized and easy-to-use servo drive system for a wide range of motion control tasks with a focus on dynamic movement and processing. The SINAMICS V90 servo converter is suitable for connecting the SIMOTICS S-1FL6 servo motor; both together form a cost-effective servo drive system. This is characterized by reliable operation, optimized performance and easy handling. With the SIMATIC Controller, it forms a strong team in the TIA Portal. Depending on the version, the free SINAMICS V-ASSISTANT commissioning tool can be downloaded for quick and easy commissioning. The SINAMICS V90 servo converter is suitable for operation on three-phase networks and, with four sizes, covers a power range from 0.4 kW to 7.0 kW and a voltage range from 380 V to 480 V. The system can be easily integrated via PTI, PROFINET, USS and Modbus RTU. The SINAMICS V90 servo converter can be individually adapted to the user's requirements using various options such as connection cables, line filters, plug connections and other accessories. SINAMICS - simply my drive.
| Property | Value |
| Protection class (IP): | IP20 |
| Line voltage: | 380 to 480 V |
| Height: | 260 mm |
| Width: | 140 mm |
| Depth: | 240 mm |
| Relative symmetrical line voltage tolerance: | 10 % |
| Number of input phases: | 3 |
| Number of analog outputs: | 2 |
| Number of analog inputs: | 2 |
| Number of digital outputs: | 6 |
| Number of digital inputs: | 10 |
