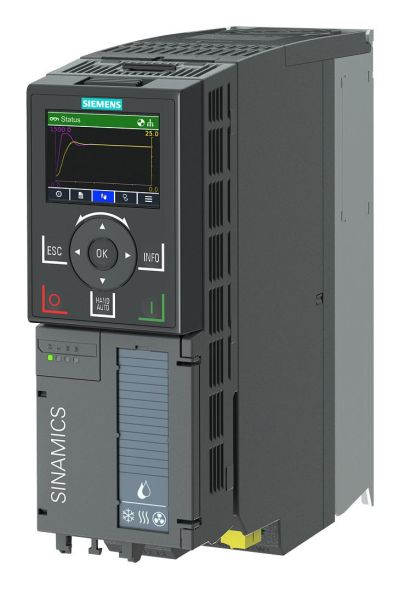

SINAMICS G120X Rated power: 1.5kW at 110% 60s, 100% 240s unfiltered 3AC380-480V+10/-20% 47-63Hz Ambient temperature -20 to +45°C Frame size: FSA Protection class IP20 / UL open type Paint finish 3C2 without operator panel without IO extension Integrated field bus: PROFINET-PN, Ethernet IP SINAMICS G120X frequency converters handle the elements for pump/fan applications, the water/wastewater (W/WW) sectors and building technology/HVAC. The SINAMICS G120X is impressive due to its easy selection and ordering, easy handling 'out of the box' and easy integration into the application. Simple setup with the SINAMICS G120 Smart Access Module or the IOP-2 operator panel. The SINAMICS G120X runs stably under all network conditions, optionally meets EMC categories C2 and C1 and is particularly robust thanks to its operating temperature of -20 °C to +60 °C. Specific industry functions such as pipe filling mode and bypass function make the converter particularly efficient. All devices in the series are consistent and uniform across all voltages and networks and are consistently geared towards cost-optimized and resource-saving operation. Their compact design saves space in the control cabinet. The SINAMICS G120X is available in nine sizes in a power range from 0.75 kW to 630 kW. The SINAMICS G120X frequency converter can be easily commissioned using various options such as the external Basic Operator Panel (BOP-2), the Smart Access Module (SAM) or the intelligent Operator Panel (IOP-2). SINAMICS - simply my drive.
| Property | Value |
| Protection class (IP): | IP20 |
| Number of PROFINET interfaces: | 2 |
| Mains voltage: | 380 to 480 V |
| Number of other HW interfaces: | 6 |
| Max. Output frequency: | 550 Hz |
| Use in industrial areas permitted: | no |
| Height: | 232 mm |
| Width: | 73 mm |
| Depth: | 209 mm |
| Type of converter: | U-converter |
| Max. output power with linear load at rated output voltage: | 1.1 kW |
| Supports protocol for data highway: | no |
| 4-quadrant operation possible: | no |
| With optical interface: | no |
| Supports protocol for LON: | no |
| Relative symmetrical mains voltage tolerance: | -20 % |
| Supports protocol for AS-Interface Safety at Work: | no |
| Brake chopper integrated: | no |
| Number of input phases: | 3 |
| Supports protocol for TCP/IP: | yes |
| Supports protocol for DeviceNet: | no |
| Supports protocol for PROFINET IO: | no |
| Supports protocol for PROFIBUS: | no |
| Supports protocol for EtherNet/IP: | yes |
| Supports protocol for INTERBUS-Safety: | no |
| Supports protocol for SUCONET: | no |
| Supports protocol for CAN: | no |
| Supports protocol for KNX: | no |
| Use in residential and commercial areas permitted: | no |
| Supports protocol for INTERBUS: | no |
| Number of HW interfaces serial RS-232: | 1 |
| Number of HW interfaces serial TTY: | 5 |
| Supports protocol for other bus systems: | no |
| Supports protocol for ASI: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for MODBUS: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for DeviceNet Safety: | no |
| Number of HW interfaces Industrial Ethernet: | 2 |
| Relative symmetrical mains frequency tolerance: | 5 % |
| Supports protocol for SERCOS: | no |
| Number of output phases: | 3 |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Max. delivered power at square. Load at rated output voltage: | 1.5 kW |
| With PC connection: | no |
| Nominal output current I2N: | 4.3 A |
| Number of analog outputs: | 1 |
| Number of analog inputs: | 2 |
| Number of digital inputs: | 6 |
