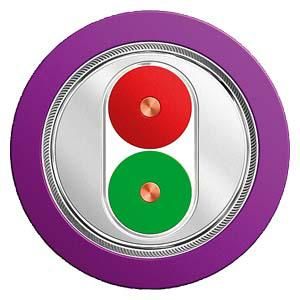

PROFIBUS FC robust bus cable with PUR outer jacket for use in chemically and mechanically stressed environments, 2-core shielded, sold by the meter, delivery unit max. 1000m, minimum order quantity 20m. SIMATIC NETPROFIBUS FC Robust CableBus cable with special design for quick assembly. Suitable for use in chemically and mechanically stressed environments, thanks to the PUR (TPE-U) outer jacket.Time saving through simple and quick on-site assembly. Reliable shield contact and strain relief as well as good EMC shielding. Network immune to interference thanks to shielded, twisted two-wire cable. Consistent grounding concept can be implemented via the outer shield of the bus cable and via the grounding terminals of the bus terminals. Silicone-free, therefore suitable for use in the automotive industry (e.g. paint shops). Easy length determination thanks to the printed meter marking.
| Property | Value |
| Number of cores: | 2 |
| Outer diameter approx.: | 8 mm |
| Stranding element: | Pairs |
| Low smoke according to EN 61034-2: | no |
| Conductor diameter: | 0.65 mm |
| Number of stranding elements: | 1 |
| Sheath material: | Polyurethane (PUR) |
| Permissible external cable temperature during assembly/handling: | -40 °C |
| Permissible external cable temperature after assembly without vibration: | -40 to 60 °C |
| Sheath material specification: | other |
| Fire behavior class according to EN 13501-6: | Fca |
| Min. permissible bending radius, flexible use with forced guidance: | 150 mm |
| Min. permissible bending radius, flexible use/free movement: | 150 mm |
| Min. permissible bending radius, stationary use/fixed installation: | 150 mm |
| Laying in the ground: | no |
