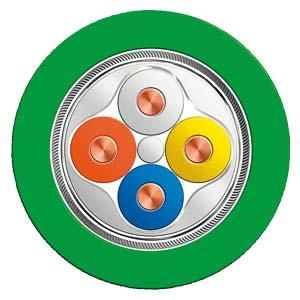

Industrial Ethernet FastConnect TP robust standard cable GP 2x2 (PROFINET type A), TPE outer jacket, fixed installation for connection to FC RJ45 plug and FC outlet RJ45, for universal use, 4-core, shielded CAT 5, sold by the meter, delivery unit max. 2000 m, minimum order quantity 20 m. SIMATIC NETIE FC TP Robust Standard Cable GP 2x2 (Type A)Universally applicable, robust cable.Time saving through simple and quick on-site assembly. Interference-resistant network thanks to double-shielded cables and consistent grounding concept. Silicone-free, therefore suitable for use in the automotive industry (e.g. paint shops). Exceeds category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173. Easy length determination thanks to printed meter marking.
| Property | Value |
| Number of cores: | 4 |
| Outer diameter approx.: | 6.5 mm |
| Category: | 5E |
| Low smoke according to EN 61034-2: | no |
| Conductor diameter: | 0.64 mm |
| Number of Stranding elements: | 2 |
| Sheath material: | others |
| Permissible Cable external temperature during assembly/handling: | -20 to 60 °C |
| Perm. External cable temperature after installation without vibration: | -40 to 75 °C |
| NVP value: | 66 % |
| Specification of sheath material: | other |
| Fire behavior class according to EN 13501-6: | Eca |
| Min. permissible bending radius, flexible use with forced guidance: | 52 mm |
| Min. permissible bending radius, flexible use/free movement: | 52 mm |
| Min. permissible bending radius, stationary use/fixed installation: | 52 mm |
