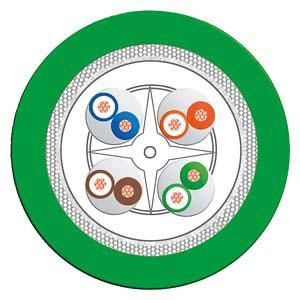

Industrial Ethernet FastConnect TP flexible Cable GP 4x 2, TP installation cable CAT6A for connection to IE FC RJ45 Plug 4x 2, AWG24, sold by the meter, delivery unit max. 1000m, minimum order quantity 20m. SIMATIC NET IE FC TP Flexible Cable GP 4x2 (AWG 24, Type C)Flexible cable for gigabit-capable cabling system, for use in occasionally moving machine parts.Time saving through simple and quick on-site assembly. High interference immunity through double shielding. RoHS-compliant, free from paint-wetting substances. Category 6 (Cat6) of the international cabling standard ISO/IEC 11801 and EN 50173. UL approval. Easy length determination thanks to the printed meter marking.
| Property | Value |
| Number of cores: | 8 |
| Outer diameter approx.: | 8 mm |
| Stranding element: | Pairs |
| Category: | 6 |
| Low smoke according to EN 61034-2: | no |
| Conductor diameter: | 0.6 mm |
| Number of stranding elements: | 4 |
| Sheath material: | Polyvinyl chloride (PVC) |
| Permissible external cable temperature during assembly/handling: | -40 to 80 °C |
| Permissible external cable temperature after assembly without vibration: | -40 to 80 °C |
| NVP value: | 68 % |
| Sheath material specification: | other |
| Fire behavior class according to EN 13501-6: | Eca |
| Min. permissible bending radius, flexible use with forced guidance: | 40 mm |
| Min. permissible bending radius, flexible use/free movement: | 40 mm |
| Min. permissible bending radius, stationary use/fixed installation: | 40 mm |
Features
Sheath material
Polyvinyl chloride (PVC)
Outer diameter approx.
8 mm
Category
6
Conductor diameter
0.6 mm
HAB
6XV1878-2B flexible Cat6 GP 4x2
Minimal order
20 meters
Manufacturer
HAN
6XV1878-2B
GTIN
4019169853385
Wire number
8
