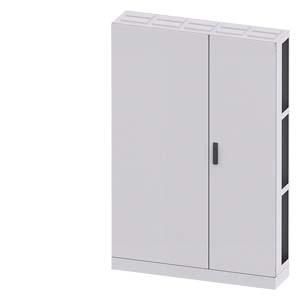

ALPHA 630, floor-standing cabinet, with open side wall, IP55, protection class 1, H: 1950 mm, W: 1300 mm, D: 320 mm, RAL 7035 The ALPHA installation distributors - a complete system of wall and floor-standing distributors for the installation of devices up to 1250 A. The ALPHA distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive versions up to 1250 A. Due to the platform structure and the modular design, the device-specific installation kits can be integrated into various distributor variants. This facilitates planning and assembly. The equipment is installed individually and project-specifically. The SIMARIS configuration software supports everything from planning to documentation of the energy distributors and installation distributors. ALPHA - the system concept counts.
| Property | Value |
| Height: | 1950 mm |
| Width: | 1300 mm |
| Depth: | 320 mm |
| Installation depth: | 320 mm |
| Inner depth: | 320 mm |
| Impact resistance: | IK09 |
| RAL number: | 7035 |
| Suitable for outdoor use: | no |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of openings for flange plates: | 20 |
| Type of cover: | optional |
| Cover design: | without |
| Material thickness door/cover: | 1 mm |
| With lock: | yes |
| Rated current (In): | 630 A |
| Transparent cover/door: | no |
| Protection class (NEMA): | other |
