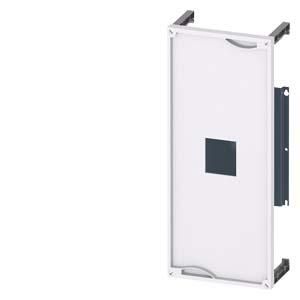

ALPHA 630 DIN, installation kit for 3 and 4-pole circuit breaker 3VL630, H=600 W=250 The ALPHA installation distributors are a complete system of wall and floor-standing distributors for the installation of devices up to 1250 A. ALPHA - the system concept counts. The ALPHA distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive versions up to 1250 A. Due to the platform structure and the modular design, the device-specific installation kits can be integrated into various distributor variants. This makes planning and assembly easier. The equipment is installed individually and project-specifically. The SIMARIS configuration configuration software supports the ALPHA energy distributors and installation distributors from planning to documentation. The Siemens ALPHA installation distributors are characterized by: 1. For quick and easy installation, the installation kits consist of device-specific support plates and field covers. 2. Quick-assembly kits are pre-assembled and already include the longitudinal beams. Thanks to the quick-locking technology, these can be snapped into empty cabinets of the appropriate height, saving time. www.siemens.de/alpha Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, installation distributors as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.
| Property | Value |
| Height: | 600 mm |
| Width: | 250 mm |
| With N-PE terminals: | no |
| With cover: | yes |
| With mounting plate: | yes |
