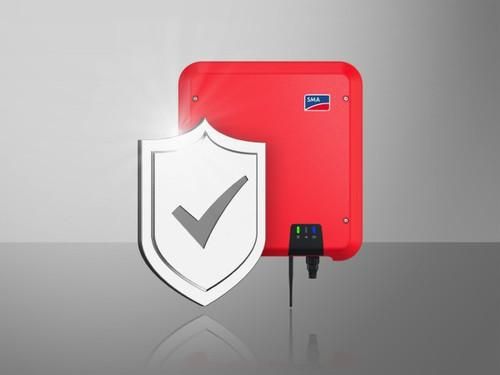

Solar inverter for single-phase grid feed-in, Pac,r/Sac, max. 5.0 kW/ 5.0 kVA, transformerless, SMA Smart Connected, SMA ShadeFix, integrated web server with Smart Inverter Screen and installation assistant, integrated RS-485 communication interface, WLAN and Ethernet, SMA Modbus and SunSpec protocol, DC connection SUNCLIX, DC disconnect switch, 2 independent MPP trackers, parallel connection of the MPP trackers, documentation in all European languages. Phases 1/3 = 1, max. input current (Amp) = 2 x 15. Solar inverter for single-phase grid feed-in, Pac,r/Sac, max. 5.0 kW/ 5.0 kVA, transformerless, SMA Smart Connected, SMA ShadeFix, integrated web server with Smart Inverter Screen and installation assistant, integrated RS-485 communication interface, WLAN and Ethernet, SMA Modbus and SunSpec protocol, DC connection SUNCLIX, DC disconnect switch, 2 independent MPP trackers, parallel connection of the MPP trackers, documentation in all European languages.
| Protection class (IP) | IP65 |
| Width | 435 mm |
| Weight | 20.5 |
| Height | 470 mm |
| Depth | 176 mm |
| AC output power rating | 5000 W |
| Max. DC input power | 7500 W |
| MPP voltage | 175 - 500 V |
| Weight | 17.5 kg |
| Display | without |
| Euro efficiency | 96.50 % |
| Suitable for outdoor installation | yes |
| Number of independent MPPT inputs | 2 |
| With data logger | yes |
| Grid monitoring | 1-phase |
| Max. input current at DC | 30.00 A |
| Max. Input voltage DC | 600.00 V |
| Max. input current DC per MPP tracker | 15.00 A |
| Max. efficiency | 97.00 % |
| Integrated DC switch | yes |
| String connections per MPPT input | 2.00 |
