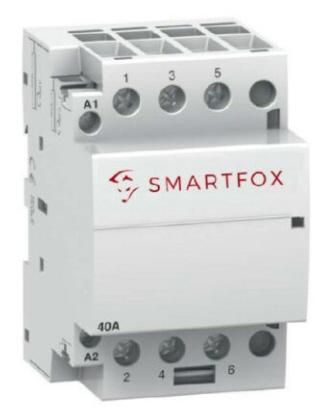

SMARTFOX 0767523866222 for charging station 1ph/3ph switching contactor

SMARTFOX contactor for charging station 1ph/3ph switching 40A, 3xcloser, coil 230VAC, 3TE

The SMARTFOX load contactor for automatic 1/3-phase switching in conjunction with the Smartfox Energy Manager Pro enables efficient charging of the electric vehicle with its own PV surplus, even with small PV systems or days with low energy yield.

100% solar energy can be used to charge from just 1.3kW surplus. The automatic switching from 1-phase to 3-phase operation from 4.3kW allows dynamic control up to the maximum charging power of your charging station.

<6>Manufacturer: Smartfox<6>Contacts: 3 normally open contacts<6>Manufacturer number: 0767523866222<6>Nominal operating current Ie: 40A AC<6>Control circuit voltage: 220-240V AC 50Hz<6>Rated operating voltage Ue: 400V AC 50Hz<6>Rated impulse withstand voltage Uimp: 4kV<6>Type of control signal: held<6>Clock frequency: 100 switching operations/day<6>Displays on the device: Action display<6>Holding power consumption: 6.5VA<6>Pull-in power: 53VA<6>Connection main circuit Rigid: 6 to 25mm² / Fine-core with wire end ferrule: 6 to 16mm²<6>Width: 54mm (3TE)<6>Mounting bracket: 35mm symmetrical DIN rail<6>Mechanical life: 1,000,000 cycles<6>Electrical life: 100,000 cycles IEC/EN 61095 40 A 50 Hz AC-7A<6>Standards: IEC/EN 61095<6>Protection class: IP20
