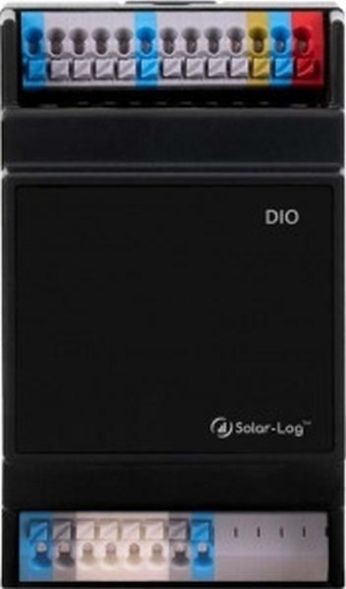

SolarEdge Technologies Solar Data Systems Mod I/O for Power Management Connection

I/O interface module, device voltage/device power 12-24 V (+-10 %) / typ. 2 W, input voltage: nominal value: 24 V/for signal '1': 15 V to 24 V (at Vin 24 V)/for signal '0': 0 V to 5 V (at Vin 24 V), input current: For signal '1': typ. 2 mA, total current of the outputs: When supplied via HBus: 250 mA/with ext. Power supply: 1 A, output voltage: for signal '1' min.: Vin (-0.8 V), output current: for signal '1': max. 150 mA, for signal '0' (residual current): max. 0.5 mA, ambient temperature: -20 °C to +50°C (without condensation), housing (WxHxD): 3TE/53.6x89.7x60.3 mm, mounting: DIN rail IEC/EN 60715 35 mm, protection class according to EN60529: IP 20, weight: 90 g, power supply via BUS
