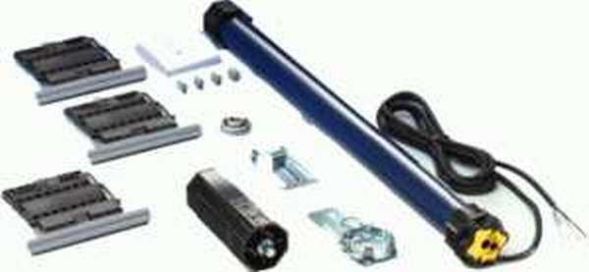

The drive is controlled via radio control (included in delivery). Package contents: - Radio plug-in drive - Centralis RTS Somfy radio wall transmitter - Adapter and driver for a precise fit of the drive in the 8-edge shaft - Motor bearing - Counter/ball bearing for particularly safe, low-friction and low-noise operation - Telescopic roller capsule - any length adjustments to the roller shutter shaft can be carried out quickly and easily by removing the belt/ball gear - Fastening springs for simple, precise fastening of the roller shutter curtain to the 8-edge shaft - Quick connection terminals - 3 m black cable Insert in 8-edge shaft: ø 50 Nominal torque: 10 Nm Nominal speed: 17 rpm Nominal voltage: 230 V Frequency: 50 Hz Nominal power consumption: 120 W
| Property | Value |
| Torque: | 10 Nm |
| Outer diameter: | 45 mm |
| Octagonal steel shaft SW 40: | no |
| Octagonal steel shaft SW 50: | yes |
| Octagonal steel shaft SW 60: | yes |
| Octagonal steel shaft SW 70: | yes |
| For roller shutters: | yes |
| For awnings: | yes |
| For grooved tube shaft: | yes |
| Type of limit switch: | electronic |
| Backjump: | no |
| Electronic travel path monitoring: | yes |
| Electronic obstacle detection: | yes |
| With driver: | yes |
| With adapter for shaft: | yes |
| Length: | 675 mm |
| Max. Roller shutter weight: | 24 kg |
