Description

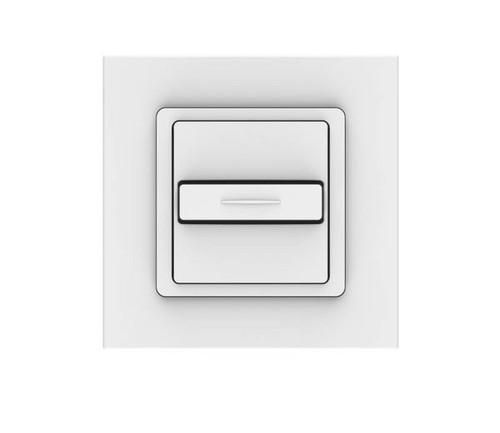

Wall control unit in an attractive design for controlling a wired drive (230 V), e.g. for roller shutters or awnings. With UP, DOWN and STOP functions. - Suitable for all switch programs via a 50 x 50 mm adapter frame from the switch manufacturers - Mounting plate for easy wall mounting - Screwless wiring with clamp terminals - Suitable for flush-mounted boxes from 50 mm depth Scope of delivery: Single switch with mounting plate for integration into common switch programs Operating voltage: 230 V Switching current max. 6 A Operating temperature: -5 °C to 45 °C Protection class: IP20 Dimensions (W x H x D): 50 x 50 x 42 mm
| Property | Value |
| Color: | white |
| Design: | 1-pin button |
| Number of buttons: | 2 |
| Suitable for protection class (IP): | IP20 |
| Operating mode: | Rocker switch |
| Rated voltage: | 250 V |
| Mounting type: | Module carrier |
| Text field/labeling area: | no |
| Composition: | Base element with central cover plate |
| Electrical and mechanical locking: | no |
| Mechanically operable: | yes |
| Electronically operated: | no |
| Material: | plastic |
| Material quality: | other |
| Surface: | other |
| Surface finish: | glossy |
| Mounting type: | claw/screw fastening |
| Rated current: | 6 A |
| Transparent: | no |
| Number of poles: | 1 |
| Min. depth of device box: | 40 mm |
Features
Number of buttons
2
HAB
Smoove Uno IN
Manufacturer
HAN
1800534
GTIN
3660849543914
Version
Button 1-pole
Surface finish
Glittering
Operating mode
Seesaw
Mounting type
Claw/screw fastening
Rated current
6A
Color
Suitable for protection class (IP)
IP20
Min. depth of the device box
40 mm
Mounting type
Module carrier
Nominal voltage
250V
Surface
Other
Number of poles
1
Text field/label area
No
Transparent
No
Material
Plastic
Material quality
Other
Compilation
Base element with central cover plate
