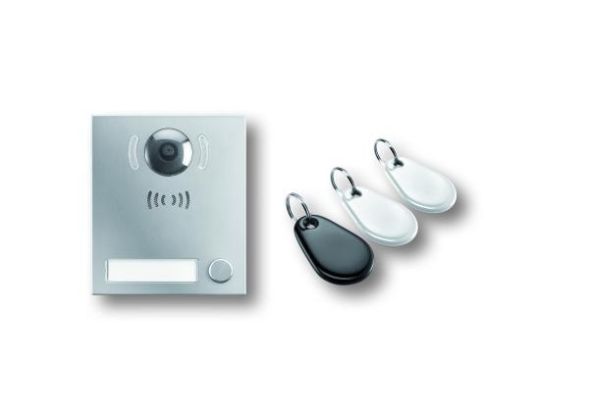

Camera module for 1- or 2-family houses, use in a surface-mounted or flush-mounted housing with the option of accommodating one or more modules. The connection between the indoor station and the camera module is made via a 2-wire bus line. The integrated chip card reader can be used to open the front door using a chip card. - Large field of view: horizontal 160°, vertical 101° - Night vision: infrared LEDs without glare effect - Integrated chip card reader: opening of the front door via chip card - Illuminated name plate Scope of delivery: camera module, 1 black chip card, 2 white chip cards (3 white chip cards for item no. 1 841 221) Front panel: aluminum Camera: CCD Camera angle: horizontal: 160°, vertical: 101° Night vision: 6x IR LEDs Name plate/bell button: blue backlit Inputs/outputs: NO/NC potential-free contact, electric door opener, button input for opening an entrance gate Settings: loudspeaker volume, microphone gain, relay activation time (1, 2, 5 or 10 seconds) Access control: integrated chip card reader Power supply: via 2-wire bus Protection class: IP54 Operating temperature: -20 °C to 60 °C Dimensions (WxHxD): 104 x 121 x 22 mm
| Property | Value |
| Suitable for: | Outdoor station |
| Material: | Aluminium |
| Mounting type: | other |
| Color: | gray |
