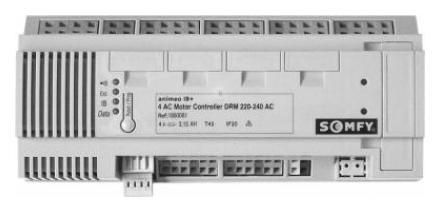

For roller shutters, blinds, Venetian blinds and windows. For individual control of 4 x 230 V AC motors via local buttons or in groups via IB+ control technology. Maximum comfort and energy savings in combination with animeo IB+ TouchBuco or Building Controller. For DIN rail installation, 12 HP. - Suitable for drives with mechanical and electronic limit switches - Local control can be upgraded to radio - Local setting of the intermediate position and operating ergonomics - Wake-up time of electronic drives adjustable via animeo Building Controller - VDE-certified - Easily accessible protective fuses per output Dimensions (WxHxD): 210 x 90 x 61 mm Protection type: IP 20 Protection class: II Operating voltage: 230 V AC Operating temperature: 0 °C to 45 °C Output voltage: 230 V AC Output current: max. 3.15 A per output
| Property | Value |
| Frequency: | 50 to 60 Hz |
| Suitable for protection class (IP): | IP20 |
| Mounting type: | REG |
| Integrated timer: | no |
| With astro program: | no |
| Composition: | Basic element |
| With brightness sensor connection: | no |
| Suitable for wind sensor: | no |
| Suitable for rain sensor: | no |
| With glass break detector connection: | no |
| Extension input: | no |
| With memory function: | no |
| Random generator: | no |
| Lock-out protection: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Version the surface: | matt |
| Color: | gray |
| Max. switching capacity: | 720 W |
| Nominal voltage: | 230 V |
| Mounting type: | other |
| Transparent: | no |
