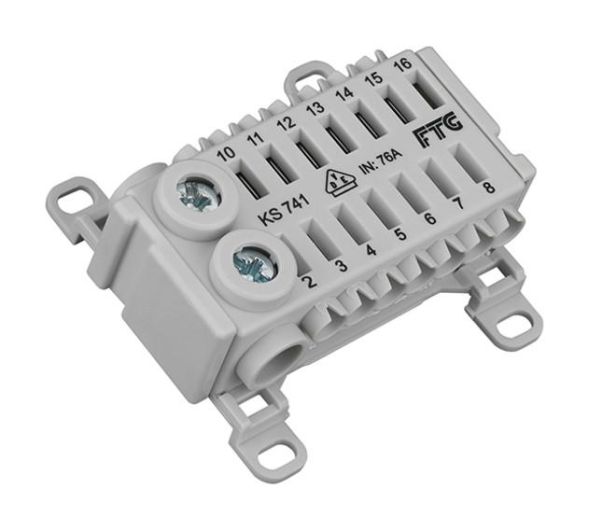

PE/N terminal for installation in GTA circuit breaker boxes as additional terminals or for replacement requirements, 1 module, grey, 76 A, 2 x 25mm² + 14 x 4mm² for NS 35Dimensions: 58 x 53 x 23.8mm
| Property | Value |
| Number of poles: | 1 |
| Color: | grey |
| Rated voltage: | 450 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 76 A |
| Operating temperature: | 40 °C |
| Connectable conductor cross-section, single-wire: | 0.5 to 25 mm² |
| Connectable conductor cross-section, multi-wire: | 0.5 to 25 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.5 to 16 mm² |
| Mounting type: | DIN rail TH35 |
| Design of electrical connection 1: | Screw connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminal points per pole: | 16 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
Features
HAB
KLS35-SL
Manufacturer
HAN
07422601
GTIN
4013902992867
Connectable conductor cross-section solid
0.5 to 25 mm²
Connectable conductor cross-section stranded
0.5 to 25 mm²
Rated voltage
450V
Rated current In
76 A
Operating temperatur
40°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
Number of poles
1
Transparent
No
