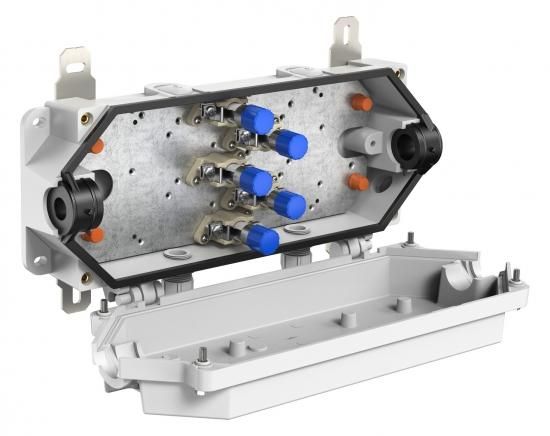

Junction box, with protection class IP66/IP67, Ui=400V AC, M25, (5 side), external fastening points, for installations in industrial environments and tunnel areas, pressure-suction-tight according to the Gotthard directive. Halogen-free housing made of special duroplast, terminals made of high-temperature-resistant special ceramic. External fastening tabs and cover screws made of stainless steel 1.4571, grey, passage: 5-pole terminal for uncut conductors, clamping range for uncut conductors 16mm² to 50mm², clamping range for cut conductors 16mm² to 35mm², rated current 100A. Branch 5-pole 2 x 2, 5-6mm², rated current 40A. Sealing range main cable: 21-26mm (other sealing ranges on request)Dimensions: 190 x 447 x 105mmIncluded accessories: 2 pieces cable gland M25, sealing range 9-16mm4 pieces locking screws M25
| Property | Value |
| Width: | 190 mm |
| Length: | 447 mm |
| Depth: | 105 mm |
| Color: | orange |
| Protection class (IP): | IP66 |
| Number of entries: | 7 |
| Halogen-free: | yes |
| Mounting type: | Wall/ceiling mounting |
| Material: | Plastic |
| Cover fastening: | screwed |
| Sealable: | no |
| Can be arranged in series: | yes |
| Shape: | rectangular |
| Max. Conductor cross-section: | 50 mm² |
| Type of housing feedthrough: | other |
| For Ex zone gas: | without |
| Functional integrity: | without |
| Explosion-tested version: | no |
| Potting compound supplied: | no |
| Potable: | no |
| For Ex zone dust: | without |
| Installation under water: | no |
| Transparent cover: | no |
| Installation in the ground: | no |
| Surface: | untreated |
| With shielding: | no |
| Rated insulation voltage Ui: | 400 V |
| Introduction from the rear: | no |
| Weatherproof: | yes |
| Cover design: | other |
| Operating temperature: | -25 to 40 °C |
