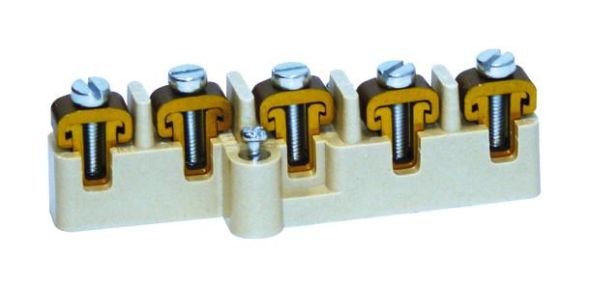

9395157 WK 160 KLS-16 terminal block terminal block manufacturer article number: 9395157, manufacturer article name: WK 160 KLS-16 terminal block
| Property | Value |
| Number of poles: | 5 |
| Color: | gray |
| Rated voltage: | 690 V |
| Material of the insulating body: | Duroplast |
| Rated current In: | 76 A |
| Operating temperature: | 40 °C |
| Connectable conductor cross-section, single-wire: | 6 to 16 mm² |
| Connectable conductor cross-section, multi-wire: | 6 to 16 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | screw connection |
| Number of terminal points per pole: | 1 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
Features
HAB
WK 160 KLS-16 clamping block
Manufacturer
HAN
46051601
GTIN
4013902852376
Connectable conductor cross-section solid
6 to 16 mm²
Connectable conductor cross-section stranded
6 to 16 mm²
Rated voltage
690V
Rated current In
76 A
Operating temperatur
40°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
Other
Number of poles
5
Transparent
No
