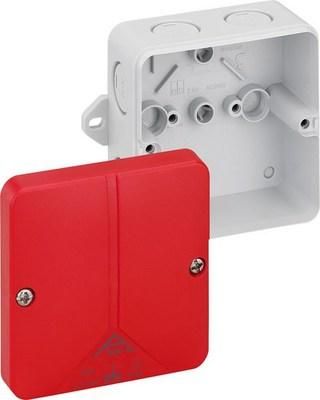

Junction box, with protection class IP66, nominal cross-section 2.5mm², Ui=690V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore facilities), deflection membranes, M20, (1 rear, 7 side), external fastening points, for installations in industrial environments and protected outdoor areas, grey, with red cover, without terminals, for marking circuits of the emergency lightingDimensions: 82 x 82 x 52mmIncluded accessories: 4 double membrane nozzles IP66 M20 sealing range 7-12mm
| Property | Value |
| Width: | 82 mm |
| Length: | 82 mm |
| Depth: | 52 mm |
| Color: | red |
| Protection class (IP): | IP66 |
| Number of entries: | 6 |
| Halogen-free: | yes |
| Equipment: | without |
| Mounting type: | Wall/ceiling mounting |
| Material: | plastic |
| Cover fastening: | screwed |
| Sealable: | no |
| Can be arranged in rows: | no |
| Shape: | rectangular |
| Max. Conductor cross-section: | 2.5 mm² |
| Type of housing feedthrough: | Pre-punched |
| For Ex-Zone Gas: | without |
| Functional integrity: | without |
| Explosion-tested version: | no |
| Potting compound supplied: | no |
| Potable: | yes |
| For Ex-Zone Dust: | without |
| Installation under water: | no |
| Transparent cover: | no |
| Installation in the ground: | no |
| Surface: | untreated |
| With shielding: | no |
| Rated insulation voltage Ui: | 690 V |
| Introduction from the rear: | yes |
| Weatherproof: | yes |
| Cover design: | other |
| Operating temperature: | -35 to 80 °C |
Features
Explosion-tested version
No
HAB
Abox-i m 025 AB SB-L junction box
Manufacturer
HAN
49970201
GTIN
4013902606603
Cover design
Other
Rated insulation voltage Ui
690V
Width
82 mm
Operating temperature
-35 to 80 °C
Color
Shape
Rectangular
Functional preservation
Without
Halogen free
Yes
Length
82 mm
Mounting type
Wall/ceiling mounting
Surface
Untreated
IP protection)
IP66
Depth
52 mm
Material
Plastic
