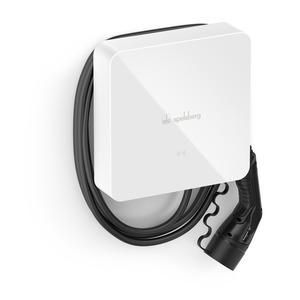

Wallbox for fast and smart charging of electric vehicles in the private sector, charging power up to 11 kW (3-phase) / 3.7 kW (1-phase) and a maximum charging current of 16 A, charging power variably adjustable, integrated DC residual current detection for direct residual currents ≥ 6 mA and temperature monitoring for a safe charging process, stylish design and compact housing dimensions for wall and column mounting, protection class IP54, maximum connection cross-section supply terminal 6mm², impact resistance IK08, protection class II.Easy installation as well as quick configuration and firmware updates with the free Spelsberg Wallbox app (available for iOS from version 14 and Android from version 6).Integrated MID meter for consumption billing, dynamic phase-individual load management with unbalanced load detection for efficient use of the available power, connection to home energy management systems (HEMS) and PV inverters for charging with solar energy, contactless authorization of the charging process via RFID, Plug & Charge (ISO15118) or AutoCharge, LED and acoustic signals for clear feedback of status changes, evaluation of extensive charging statistics.Supported communication protocols and interfaces:USBWLAN, EthernetModbus TCP, EEBus, SMA SEMPOCPP-J 1.6 for connecting external backends, Polar, 5m charging cable with type 2 couplingDimensions: 293 x 293 x 110mmIncluded accessories: 3 RFID chips, 4 fastening screws 6x60, 4 universal dowels 8x50, 3 DMS M16, 1 DMS M25, 1 DMS M32 and 5 chips for opening the design cover
| Property | Value |
| Height: | 293 mm |
| Width: | 293 mm |
| Depth: | 110 mm |
| Protection class (IP): | IP54 |
| Impact resistance: | IK08 |
| Nominal connected load: | 11 kW |
| Max. Output per charging point: | 11 kW |
| System side connection design: | 3-phase |
| Mounting type: | Wall mounting |
| Housing material: | Plastic |
| Number of charging points: | 1 |
| Number of charging couplings type 2: | 1 |
| Access control function: | yes |
| With energy meter: | yes |
| With house connection box (HAK): | no |
| With communication interface: | yes |
| With load management: | yes |
| With circuit breaker: | no |
