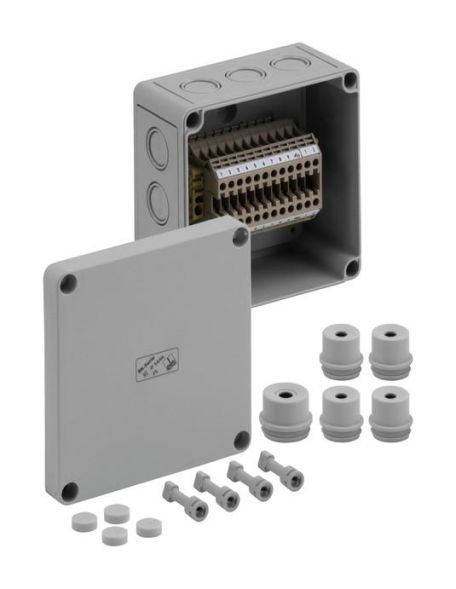

Terminal block housing, with protection class IP54/IP66, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, equipped with 12 screw terminals 4mm³ (type Weidmüller WDU 4)Dimensions: 130 x 130 x 75mmIncluded accessories: 4 mounting sockets IP54 M20 sealing range 8-13.5mm, 1 mounting socket IP54 M25 sealing range 9-18.5mm
| Property | Value |
| Protection class (IP): | IP66 |
| Length: | 130 mm |
| Width: | 130 mm |
| Depth: | 75 mm |
| Mounting type: | Surface-mounted |
| Color: | gray |
| Material: | Plastic |
| With lid: | yes |
| With transparent lid: | no |
| Sealable: | yes |
| Halogen-free: | yes |
| Max. Conductor cross-section: | 4 mm² |
| Functional integrity: | without |
| For Ex zone gas: | without |
| Type of introduction: | other |
| Rated insulation voltage Ui: | 400 V |
| Surface: | untreated |
| Number of connection terminals: | 12 |
| Mounting option: | yes |
| Number of entries: | 12 |
| Cover fastening: | screwed |
| Explosion-tested version: | no |
| Operating temperature: | -25 to 40 °C |
| For Ex zone dust: | without |
| Material thickness of housing: | 3 mm |
| Impact resistance: | IK08 |
Features
Explosion-tested version
No
HAB
RKi 4/12-12x4 terminal block housing
Manufacturer
HAN
63501201
GTIN
4013902573028
Cultivation option
Yes
Rated insulation voltage Ui
400V
Width
130 mm
Operating temperature
-25 to 40 °C
Color
Functional preservation
Without
Halogen free
Yes
Length
130 mm
Housing material thickness
3 mm
With lid
Yes
Mounting type
Surface-mounted
Surface
Untreated
Impact resistance
IK08
IP protection)
IP66
Depth
75 mm
Material
Plastic
