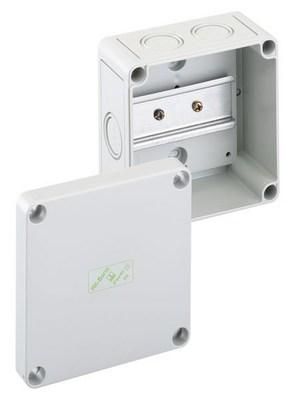

Terminal block housing, with protection class IP54/IP66, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, without terminals, with mounting rail NS35Dimensions: 110 x 110 x 90mmIncluded accessories: 4 mounting sockets IP54 M20 sealing range 8-13.5mm, 1 mounting socket IP54 M25 sealing range 9-18.5mm
| Property | Value |
| Protection class (IP): | IP66 |
| Length: | 110 mm |
| Width: | 110 mm |
| Depth: | 90 mm |
| Mounting type: | Surface-mounted |
| Color: | gray |
| Material: | Plastic |
| With lid: | yes |
| With transparent lid: | no |
| Sealable: | yes |
| Halogen-free: | yes |
| Functional integrity: | without |
| For Ex zone gas: | without |
| Type of entry: | other |
| Rated insulation voltage Ui: | 400 V |
| Surface: | untreated |
| Mounting option: | yes |
| Number of entries: | 7 |
| Cover fastening: | screwed |
| Explosion-tested version: | no |
| Operating temperature: | -25 to 40 °C |
| For Ex zone dust: | without |
| Material thickness of housing: | 3 mm |
| Impact resistance: | IK08 |
Features
Explosion-tested version
No
HAB
RKi 4/07-L empty housing
Manufacturer
HAN
63990701
GTIN
4013902573509
Cultivation option
Yes
Rated insulation voltage Ui
400V
Width
110 mm
Operating temperature
-25 to 40 °C
Color
Functional preservation
Without
Halogen free
Yes
Length
110 mm
Housing material thickness
3 mm
With lid
Yes
Mounting type
Surface-mounted
Surface
Untreated
Impact resistance
IK08
IP protection)
IP66
Depth
90 mm
Material
Plastic
