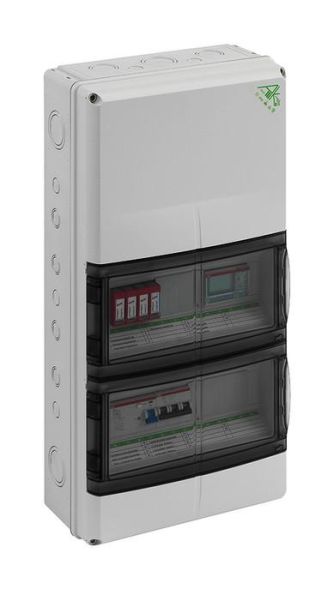

E-mobility infrastructure distributor, 1-row with integrated ventilation elements to prevent condensation, type-tested according to EN 61439-3, wired ready for connection to incoming and outgoing terminals 10mm², for a wallbox 11kW without integrated 6mA DC monitoring, equipped with LS switch 20A, RCCB 40/4/30mA type B, overvoltage protection type 2, three-phase meter with MID approval as intermediate meter
| Property | Value |
| Width: | 315 mm |
| Height: | 155 mm |
| Depth: | 600 mm |
| Main switch rated current: | 40 A |
| Protection class (IP): | IP65 |
| Number of phases: | 3 |
| Fuses: | Circuit breaker / combination residual current device/cable breaker. |
| Total number of groups: | 1 |
| Number of groups behind the residual current device: | 1 |
| Number of combinations of residual current device/circuit breaker: | 1 |
| Number of residual current devices 30 mA: | 1 |
| Stove connection group: | without |
| Stove connection group suitable as a high-voltage group: | no |
| With socket: | no |
| With bell transformer: | no |
| Surge protection: | yes |
| Material of the housing: | plastic |
| Mounting option: | yes |
| With transparent cover: | yes |
| Mounting type: | Surface-mounted |
| Width in division units: | 28 |
| Lockable: | no |
Features
HAB
AK 28+EMOBIL 11kW-B-ÜSS-Z
Manufacturer
HAN
73302201
GTIN
4013902630684
Lockable
No
Cultivation option
Yes
Number of phases
3
Width
315 mm
Width in pitch units
28
Main switch rated current
40A
Height
155 mm
Mounting type
Surface-mounted
IP protection)
IP65
Depth
600 mm
Housing material
Plastic
Overvoltage protection
Yes
