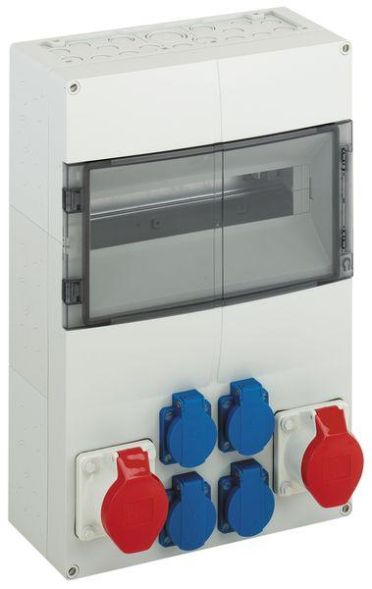

Socket combination, with protection class IP44, suitable for customer-side installation of series-mounted devices, with built-in sockets pre-wired to PE/N terminal, high mechanical load capacity, temperature-resistant, combinable, halogen-freeCable entries:Top: Pre-knockout 15 x M20, 2 x M20/25, 1 x M32/40Bottom: Pre-knockout 15 x M20, 2 x M20/25, 1 x M32/40Left: Pre-knockout 12 x M20, 3 x M25/32Right: Pre-knockout 12 x M20, 3 x M25/32, available division units: 14equipped with:4 x SCHUKO(R) socket (front), 230V2 x CEE socket (front), 16A, 400VDimensions: 300 x 450 x 142mmIncluded accessories: Double membrane socket: 1x M20, 1x M25, 1x M32, mounting socket: 1x M40, sealing plug, cover and labeling strips
| Property | Value |
| CEE socket - 16 A: | 2x16A5p400V |
| CEE socket - 32 A: | without |
| CEE socket - 63 A: | without |
| CEE socket - 125A: | without |
| Number of SCHUKO sockets: | 4 |
| Width: | 300 mm |
| Height: | 450 mm |
| Depth: | 142 mm |
| Other built-in components and/or empty spaces: | 14 |
| Protection: | without |
| FI circuit breaker: | without |
| Feed/connection option: | 1 line (spur line) |
| Handling: | Wall mounting |
| Housing material: | Plastic |
| Protection class (IP): | IP44 |
| Military version: | no |
| Color: | gray |
