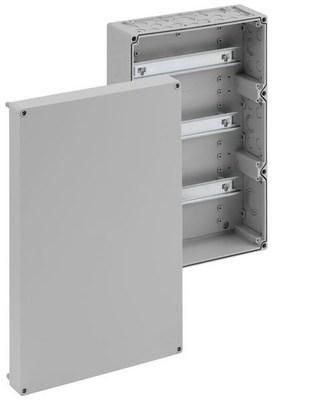

Terminal housing, with protection class IP65, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, without terminals, with mounting rails NS35Dimensions: 300 x 450 x 132mmIncluded accessories: 10 double membrane nozzles IP66 M20 sealing range 7-12mm, 2 double membrane nozzles IP66 M25 sealing range 9-16mm, 2 double membrane nozzles M32 sealing range 14-21mm, 1 double membrane nozzle IP66 M40 sealing range 19-28mm
| Property | Value |
| Protection class (IP): | IP65 |
| Length: | 450 mm |
| Width: | 300 mm |
| Depth: | 132 mm |
| Mounting type: | Surface-mounted |
| Color: | gray |
| Material: | Plastic |
| With lid: | yes |
| With transparent lid: | no |
| Sealable: | yes |
| Halogen-free: | yes |
| Functional integrity: | without |
| For Ex zone gas: | without |
| Type of introduction: | other |
| Surface: | untreated |
| Mounting option: | yes |
| Cover fastening: | screwed |
| Explosion-tested version: | no |
| Operating temperature: | -35 to 80 °C |
| For Ex zone dust: | without |
| Material thickness of housing: | 3.5 mm |
| Impact resistance: | IK08 |
Features
Explosion-tested version
No
HAB
AKi-R 4/102-L empty housing
Manufacturer
HAN
74190301
GTIN
4013902885671
Cultivation option
Yes
Width
300 mm
Operating temperature
-35 to 80 °C
Color
Functional preservation
Without
Halogen free
Yes
Length
450 mm
Housing material thickness
3.5 mm
With lid
Yes
Mounting type
Surface-mounted
Surface
Untreated
Impact resistance
IK08
IP protection)
IP65
Depth
132 mm
Material
Plastic
