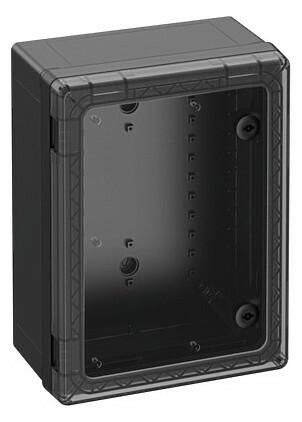

Switch cabinet industrial quality, suitable for installation in harsh environments and in unprotected outdoor areas, box and frame: glass fiber reinforced polycarbonate, black, similar to RAL 9005, door: polycarbonate.Turn latch lock with 3mm double bit insert (replaceable) according to DIN 43668, with transparent doorDimensions:300 x 400 x 180mm
| Property | Value |
| Protection class (IP): | IP66 |
| Impact resistance: | IK09 |
| Width: | 300 mm |
| 3.07 | |
| Weight unit: | KG |
| Color: | black |
| Height: | 400 mm |
| Depth: | 180 mm |
| RAL number: | 9005 |
| Number of doors: | 1 |
| Number of locks: | 1 |
| Wall mounting: | yes |
| Material quality: | other |
| Material: | plastic |
| Suitable for outdoor installation: | yes |
| Surface finish: | untreated |
| Mast attachment: | yes |
| Protection class (NEMA): | 4X |
| Heat loss capacity (Delta T = 20 K) according to IEC/TR 60890: | 26.8 W |
| Max. permissible load of the housing/cabinet according to IEC 62208: | 177 N |
| Max. permissible load of the door(s) according to IEC 62208: | 40 N |
| With top: | yes |
| With door: | yes |
| Transparent cover: | yes |
| Short description: | Switch cabinet, Protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free |
Features
Wall mounting
Yes
HAB
GEOS-S 3040-18-to/sw
Manufacturer
HAN
75143401
GTIN
4013902679751
Surface finish
Untreated
Width
300 mm
Color
Suitable for outdoor installation
Yes
Weight
3,07
Weight unit
kg
Height
400 mm
Short description
Control cabinet, protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free
RAL number
9005
Impact resistance
IK09
IP protection)
IP66
Protection class (NEMA)
4X
Depth
180 mm
Material
Plastic
Material quality
Other
