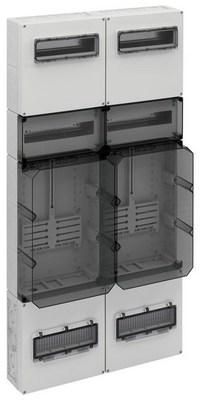

Meter distribution in multiple box design according to DIN EN 61439-2/-3, sealable as standard, for surface mounting in unmetered areas, device installation surfaces according to DIN 43870-1, meter connection cables 5-pole. Use after individual approval by the responsible network operator, with sealing plug, with insulating plug, with enclosed ventilation plug IP44 to reduce condensation, 2 meter fields, each consisting of upper connection space, 300mm, equipped with 35mm standard rails to accommodate the main line branch terminal HA25-53 (accessory) and consumer space with hinged window 12TE for series-mounted devices, incl. screwless PE/N terminal rail with 3 screwable terminal points each, 2.5-16mm², 14 screwless terminal points, 1.5-4mm², space for additional applications, 150mm, 12TE, equipped with 35mm standard rail to accommodate additional equipment of the network operator, metering point operator or metering service provider, with sealable contact protection cover and transparent cover, meter field, 450mm, with transparent cover, for 1 meter with three-point fastening, with mounted meter cross for three-phase meters and meter fastening screws, fastening dimensions according to DIN 43870-2, lower connection space, 300mm, sealable as standard, with 5-pole busbar system, 40mm busbar spacing, CU12x5mm, rated current 160A, Icw= 25kA(0, 2s), busbar terminals, for N and PE conductors, for CU conductors 16-35mm², with hinged window 12TE for layperson operation of the main circuit breakers and additional space for surge protection devices, cable entry through cable gland (IP65, accessory) or stepped nipple M40 (IP55, enclosed)Dimensions: 600 x 1200 x 210mm
| Property | Value |
| Height: | 1200 mm |
| Width: | 600 mm |
| Depth: | 210 mm |
| Protection class (IP): | IP65 |
| With hinged lid: | yes |
| Mounting type: | Structure |
| With mounting rail: | yes |
| Material: | Plastic |
