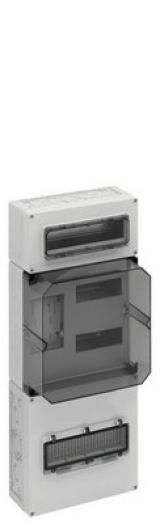

Meter distribution in multiple box design according to DIN EN 61439-2/-3, sealable as standard, for surface mounting in unmetered areas, device installation surfaces according to DIN 43870-1, meter connection cables 5-pole. Use after individual approval by the responsible network operator, with sealing plug, with insulating plug, with enclosed ventilation plug IP44 to reduce condensation, upper connection space, 150mm, equipped with 35mm standard rail with hinged window 12TE for series-mounted devices, meter field, 300mm, with transparent cover, with 1 BKE-I for eHZ, with option for installation of series-mounted devices, 2 x 7TE, with sealable contact protection cover, lower connection space, 300mm, sealable as standard, with 35mm standard rail for main circuit breaker, with PE/N double terminals, with hinged window 12TE for layperson operation of the main circuit breaker and additional space for surge protection devices, cable entry through cable gland (IP65, accessory) or stepped nipple M40 (IP55, enclosed)Dimensions: 300 x 750 x 210mm
| Property | Value |
| Height: | 750 mm |
| Width: | 300 mm |
| Depth: | 210 mm |
| Protection class (IP): | IP65 |
| With hinged lid: | yes |
| Mounting type: | Structure |
| With mounting rail: | yes |
| Material: | Plastic |
