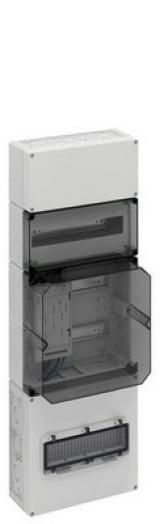

Meter distribution in multiple box design according to DIN EN 61439-2/-3, sealable as standard, for surface mounting in unmetered areas, device installation surfaces according to DIN 43870-1, meter connection cables 5-pole. Use after individual approval by the responsible network operator, with sealing plug, with insulating plug, with enclosed ventilation plug IP44 to reduce condensation, upper connection compartment, 150mm, equipped with 35mm standard rail to accommodate the main line branch terminal HA 25-53 (accessory), space for additional applications, 150mm, 12TE, equipped with 35mm standard rail to accommodate additional equipment of the network operator, meter operator or metering service provider, with sealable contact protection cover and transparent cover, meter panel, 300mm, with transparent cover, with 1 BKE-I for eHZ, can be expanded by another BKE-I (in compliance with the specifications of AR-N 4100), lower connection compartment, 300mm, sealable as standard, with 5-pole busbar system, 40mm busbar spacing, CU12x5mm, rated current 160A, Icw= 25kA(0, 2s), busbar terminals, for N and PE conductors, for CU conductors 16-35mm², with hinged window 12TE for layperson operation of the main circuit breakers and additional space for surge protection devices, cable entry through cable gland (IP65, accessory) or stepped nipple M40 (IP55, enclosed)Dimensions: 300 x 900 x 210mm
| Property | Value |
| Height: | 900 mm |
| Width: | 300 mm |
| Depth: | 210 mm |
| Protection class (IP): | IP65 |
| With hinged lid: | yes |
| Mounting type: | structure |
| With mounting rail: | yes |
| Material: | Plastic |
